UMTS RAN: Lucent Node B
| Name |
Lucent |
| Product Range |
OneBTS Indoor
OneBTS Outdoor |
| System |
UMTS |
| Unit |

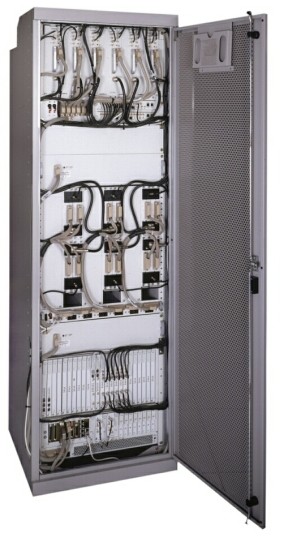

OneBTS Indoor |
| Dimensions |
1880H x 600W x 600D mm 373kg |
| Carriers |
6 carriers, 3 sectors
3s/4c or 6s/2c with extension rack |
| Access Method |
FDD |
| Max Tx Power |
40W, 20W with tx diversity |
| Transmission Rates |
|
| Integrated Transmission |
|
| Interface Types (Iub) |
|
| Note |
|
|
|
| Unit |
OneBTS Outdoor |
| Dimensions |
1880H x 750W x 700D mm 496kg |
| Carriers |
6 carriers, 3 sectors
3s/4c or 6s/2c with extension rack |
| Access Method |
FDD |
| Max Tx Power |
40W, 20W with tx diversity |
| Transmission Rates |
|
| Integrated Transmission |
|
| Interface Types (Iub) |
|
| Note |
|
|
Picture N/A
|
| Unit |

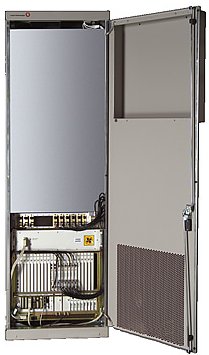

The Flexent® CDMA
High Density (HD) 4.0 |
| Dimensions |
|
| Carriers |
|
| Access Method |
CDMA2000 1xEV-DO and
UMTS |
| Max Tx Power |
|
| Transmission Rates |
|
| Integrated Transmission |
|
| Interface Types (Iub) |
|
| Note |
|
|
*) This picture is courtesy of www.3G.co.uk
|
Other members of the OneBTS base station family for UMTS include:
Flexent OneBTS Integrated Base Station
Flexent OneBTS Distributed Cell
Flexent OneBTS UltraSmall Cell
